ï¿½Modelï¿½ï¿½

CL-HD-ENCï¿½

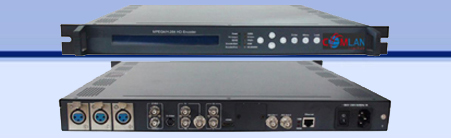

	CL-HD-ENC, HD Video / Audio - MPEG4 h.264 Encoder

High Definition H.264 MPEG-4 Digital Video Encoder With IP Output

CL-HD-ENC is a single AVC/H.264 HD Encoder with CVBS, YPbPr, SDI, and HDMI inputs and ASI and IP output .

The CL-HD-ENC encoder allows users to transport high definition HD Video / Audio signals over IP networks. The encoder compresses HD Video very efficiently without video quality degradation. The unit streams signals such as HD-SDI, HDMI, and Component video.

Compressed video can be easily sent trough Ethernet or optical ASI networks to the decoders location. The H.264 decoder then reconstructs the compressed signal and outputs the video in the original HD format.

The CL-HD-ENC encoder adopts the most advanced AVC/H.264 audio encoding algorithm. Our encoder allows transmission of high-quality audio and video under a low bit-rate. The unit features several analog and digital video input interfaces (CVBS, YPbPr, HD SDI, and HDMI), and audio input interfaces (RCA, XLR, HDMI, AES and EUB). The Comlan encoder is simple to integrate and has a cost effective design that gives users an excellent digital video encoding solution. Our units are widely used in broadcast television systems, terrestrial digital TV, and in image monitoring applications.

For Sales Inquiries please contact us today: Contact Us!

Features

H.264/AVC High Profile Level 4.0 and H.264/AVC High Profile Level 3.0 encoding support, advanced video pre-processing algorithms

MPEG1 Audio Layer 2

CVBS, S-Video, YPbPr analog video input support

HDMI, HD/SD-SDI digital video input support

AES/EBU, HDMI, HD/SD-SDI digital audio input support

XLR (balance), RCA (unbalance) analog audio input support

UDP media transmission protocols & unicast/multicast output support

PAL, NTSC SD video format support

720P, 1080I HD video format support

LCD / keyboard operating

NMS support

Example Aplication

Model Selection

CL-HD-ENC

h.264 Encoder with IP and ASI outputs

CL-HD-ENC-ASI

h.264 Encoder with ASI output only

CL-HD-ENC-IP

h.264 Encoder with IP output only

Specifications

Standards

Video Input

1 × Analog CVBS, BNC interface

1 ×S-Video Analog YPbPr input, BNC interface

1 × YPbPr video input, BNC interface

HD/SD-SDI, BNC interface

HDMI interface

Video I/O

Stream output :
2×ASI outputs, BNC interface

SPTS over UDP, 10/100Base-T Ethernet interface

(UDP unicast / multicast)

Video Encoding

Resolution
1920×1080_60i, 1920×1080_50i,

1280×720_60p, 1280×720_50p

720×480_60i(NTSC), 720×576_50i(PAL)

Encoding
AVC/H.264 High Profile Level 4.0 for HD

AVC/H.264 High Profile Level 3.0 for SD

Bit-rate
0.8Mbps~20Mbps

Rate Control
CBR/VBR

GOP Structure
IBBP

Advanced Pretreatment
De-interlacing, noise reduction, sharpening

Audio

Analog stereo audio(balanced), XLR interface

Analog stereo audio(unbalanced), BNC interface

AES / EBU digital audio, XLR interface

HD/SD-SDI embedded audio

Encoding
MPEG-1 Layer 2

Sampling rate
48KHz

Resolution
24-bit

Bit-rate
64Kb/s~384Kb/s

Dimensions

Dimensions

(W × D × H)
482mm×455mm×44.5mm

Approx weight
4.5Kg

Temperature range
0~45℃(Operation), -20~80℃(Storage)

Power Requirements

Power requirement
AC110V±10%, 50/60Hz

AC 220V±10%,50/60Hz

Power consumption
17.6W
