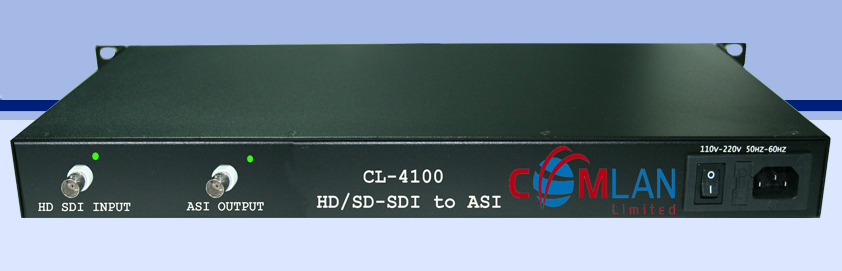

	CL-4100, HD/SD - SDI to ASI Real time Encoder Converter

Real time conversion of HD/SD-SDI to ASI

In digital video broadcast it is common for programs to originate as an SDI signal. This signals can be either HD-SDI or SD-SDI. Uncompressed video is useful in the beginning of a broadcast system, but uses far too much bandwidth for large scale broadcast. DVB-ASI is a very useful signal protocol that carries compressed video streams in the form of MPEG-2 or MPEG-4. The CL-4100 HD encoder Converts HD-SDI (SMPTE292M) or SD SDI (SMPTE259M) from uncompressed video and audio to MPEG-2 DVB-ASI, using 4:2:2 MPEG2 CODEC for compression. High quality MPEG2 video and up to eight-channels of embedded audio are available on the ASI BNC port in real time. Uncompressed HD-SDI inputs are compressed to ASI (MPEG2 TS) with programmable bit-rates from 11 to 40 Mb/s. For applications requiring MPEG-4 streams, we also offer the CL4200, which encodes the stream under the MPEG4 H.264 codec instead.

Features

Converts HD-SDI to MPEG2 ASI with embedded audio
Encode MPEG-2 transport streams with a choice of eight different bitrate settings, from 11Mbps to 40Mbps
Supports HD video resolutions up to and including 1920x1080

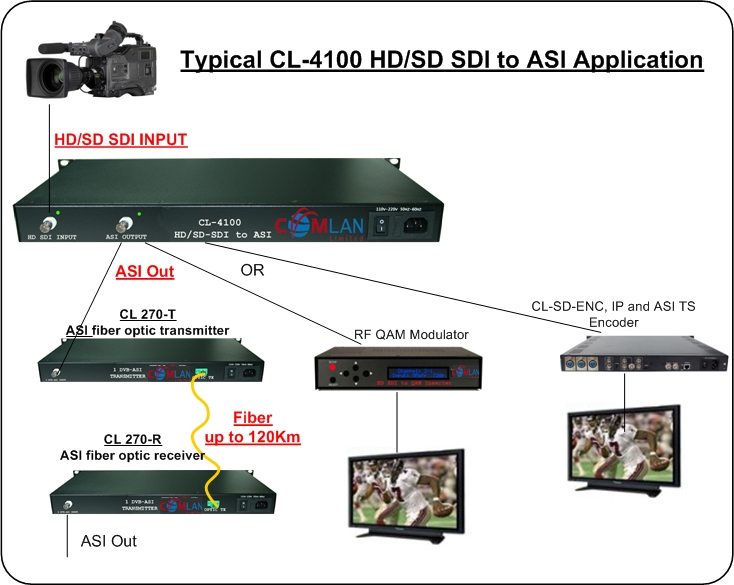

Example Aplication

Model Selection

CL-4100

HD/SD SDI to MPEG2 ASI TS Converter HD Encoder

CL-4200

HD/SDI SDI to MPEG4 H.264 ASI TS Converter HD Encoder

Specifications

Aplications

High Quality HD Video/Audio Acquisition and Delivery
- Real-Time HD-SDI <--> / ASI,
-1080i, 720p, 1080p24
- Tapeless Workflow

Video Input

1 HD-SDI (SMPTE 292M)
BNC 75 Ohm
Data rate - 1485 Mbps
HD-SDI Input (with 4-channel embedded audio and time-code)
1080i60/59.94/50,
1080p30/29.97/25/24/23.98,
720p60/59.94/50

Video Encoding

1 DVB-ASI
BNC -75 Ohm
Data rate - Up to 19.2 Mb/s
MPEG-2 transport stream
HDV (auto select)
HD1: 720/30p, 720/25p (video bit rate: 18.3 Mb/s; audio stream: stereo MPEG Audio Layer 2, 384 kb/s)
HD2 1080/59.94i, 1080/50i (video bit rate: 25 Mb/s; audio stream: stereo MPEG Audio Layer 2, 384 kb/s)
Additional formats (dip switch select)
Video bit rate: 11-, 14-, 16-, 18-, 20-, 25-, 30-, 40 Mb/s
Audio stream: MPEG Audio Layer 2, 384 kb/s

Audio Encoding

HD-SDI 2-channel embedded audio (SMPTE 299M Ch1, Ch2 only)- DOES NOT SUPPORT AC-3 Audio
